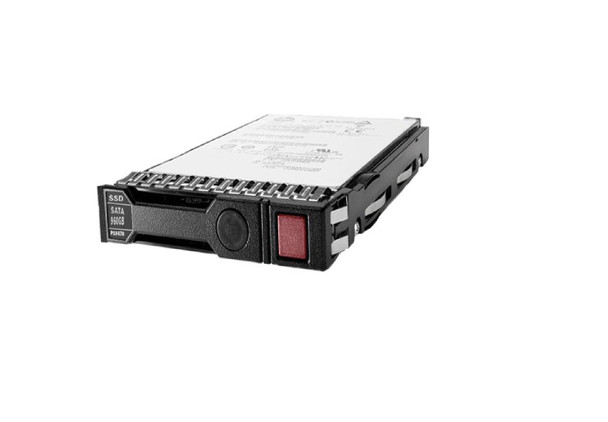

MK000960GWUGH-SC HPE 960GB SATA 6G Mixed Use 2.5in SFF MV SSD

MK000960GWUGH-SC HPE 960GB SATA 6G Mixed Use Small Form Factor (2.5in) Smart Carrier Multi Vendor Solid State Drive for ProLiant Gen8 Gen9 Gen10 Servers (Refurbished - Grade A with 30 Days Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray’s eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE MK000960GWUGH-SC Mixed Use Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 960 GB capacity. This Small Form Factor Multi Vendor Solid State Drive uses a SATA-6Gbps interface and has a 30 Days Warranty.

Compatibility Information

Designed for

HPE Apollo 4200 Gen10 (2.5 inch)

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)

HPE ProLiant DL Series: DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 Solution (2.5 inch)

HPE ProLiant ML Series: ML30 Gen10 (2.5 inch), ML30 Gen10 Entry (2.5 inch), ML30 Gen10 Performance (2.5 inch), ML30 Gen10 Solution (2.5 inch)

HPE ProLiant XL Series: XL170r Gen10 (2.5 inch), XL230k Gen10 Compute Tray (2.5 inch)

HPE Synergy 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch)

Specifications

Brand: HPE
MPN: MK000960GWUGH-SC

Option Part Number: P18434-B21
Spare Part Number: P18478-001
Model Number: MK000960GWUGH
Assembly Number: P07444-002

General

Device Type: Solid State Drive – Hot-Swap
Capacity: 960 GB
Interface: SATA 6Gbps
Form Factor: 2.5 inch SFF
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
NAND Flash Memory Type: Triple-Level Cell (TLC)
Workload Type: Mixed Use
Features: Multi Vendor SSD
Bundled with: HPE Smart Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm

Performance

30 Days Writes: 6000
Endurance DWPD: 3.4
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 520
MAX Seq. Writes Throughput (MiB/s): 480
Random Read Average Latency uSec (4KiB,Q1): 125
Random Write Average Latency uSec (4KiB,Q1): 50
Random Read IOPS (4KiB, Q=16): 63000
Random Write IOPS (4KiB, Q=16): 31000
Max Random Read IOPS (4KiB): 64500@Q32
Max Random Write IOPS (4KiB): 31000@Q4

Expansion & Connectivity

Compatible Bay: 2.5″ SFF
Interfaces: SATA 6 Gb/s

Power Consumption

Idle Time: 1.37 Watt
Random Read: 2.79 Watt
Random Write: 2.79 Watt
Sequential Read: 2.36 Watt
Sequential Write: 3.23 Watt
Random Read/Write: 2.79 Watt
Power MAX: 3.23 Watt

Minimum Dimensions & Weight

Height: 12.70 cm (5.00 inch)
Width: 22.86 cm (9.00 inch)
Depth: 17.78 cm (7.00 inch)
Weight: 0.50 kg (1.10 lbs)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
